Pitch (mm)

Mounting Type

Connect Angle

Contact Row

Height (mm)

WB3XXPT08WT4-44

Pitch (mm): 0.8

Mounting Type: SMT

Connect Angle: Right Angle

Contact Row: 1

Height (mm): 1.85

WB4XXPT08LT4-44

Pitch (mm): 0.8

Mounting Type: SMT

Connect Angle: Verticle

Contact Row: 1

Height (mm): 2.8

WC3XXPTE0022-44

Pitch (mm): 1

Mounting Type: SMT

Connect Angle: Right Angle

Contact Row: 1

Height (mm): 3.1

WC4XXXXE001X-44

Pitch (mm): 1

Mounting Type: SMT

Connect Angle: Verticle

Contact Row: 1

Height (mm): 4.35

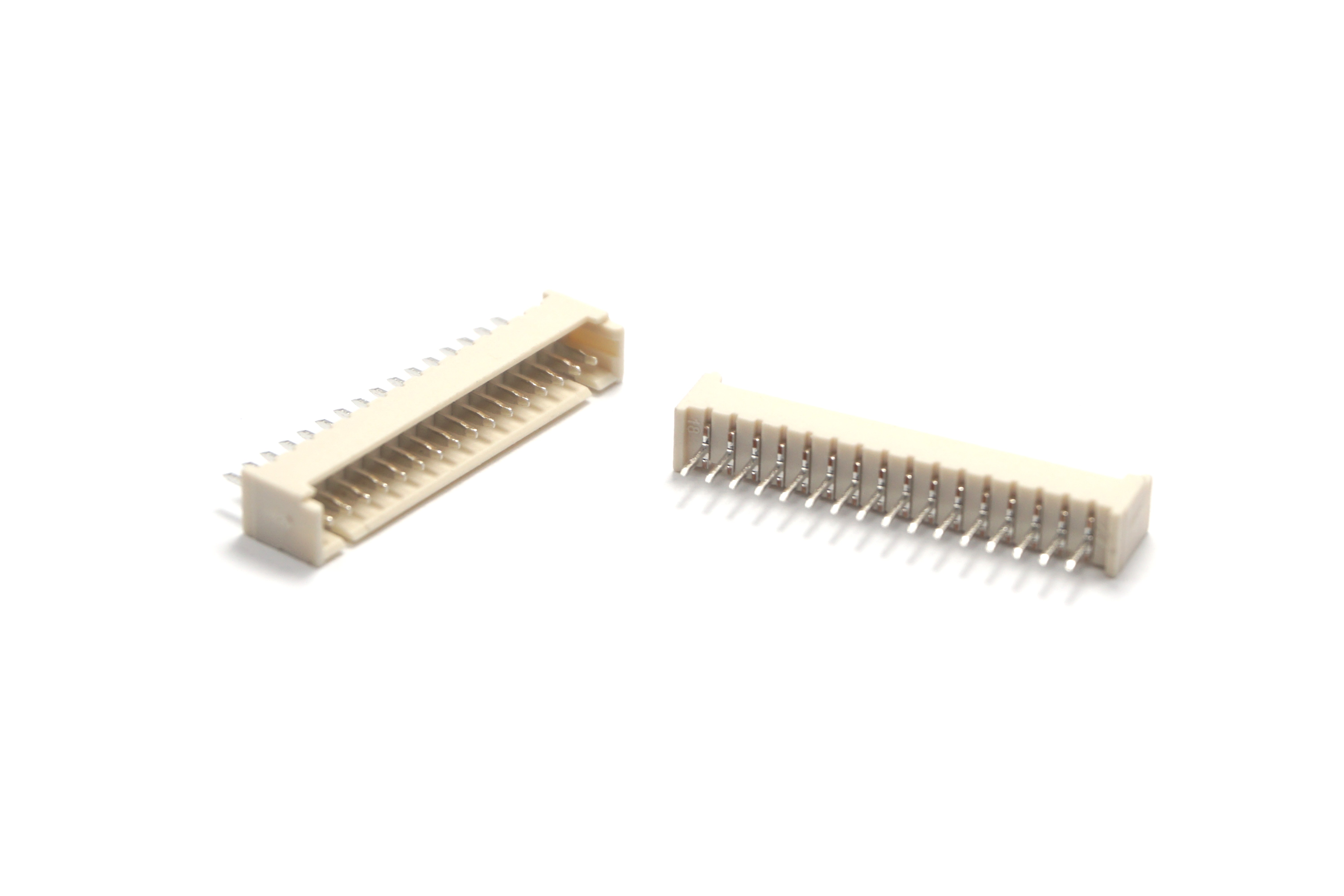

WE2XXPTE0231-44

Pitch (mm): 1.25

Mounting Type: DIP

Connect Angle: Verticle

Contact Row: 1

Height (mm): 4.7

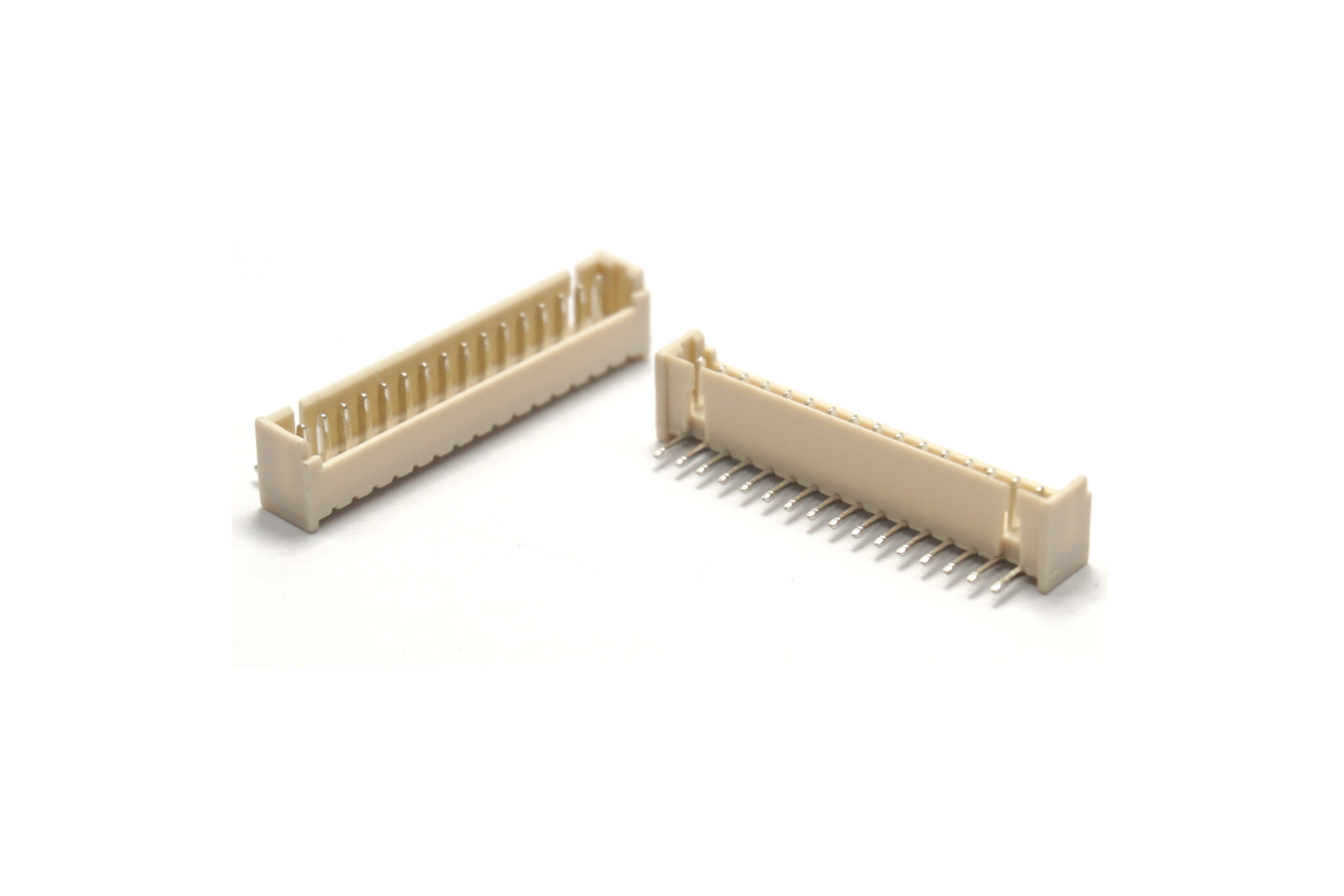

WE1XXPTE0241-44

Pitch (mm): 1.25

Mounting Type: DIP

Connect Angle: Right Angle

Contact Row: 1

Height (mm): 3.45

Pitch (mm) Mounting Type Connect Angle Contact Row Height (mm)
WB3XXPT08WT4-44 0.8 SMT Right Angle 1 1.85
WB4XXPT08LT4-44 0.8 SMT Verticle 1 2.8
WC3XXPTE0022-44 1 SMT Right Angle 1 3.1
WC4XXXXE001X-44 1 SMT Verticle 1 4.35
WE2XXPTE0231-44 1.25 DIP Verticle 1 4.7
WE1XXPTE0241-44 1.25 DIP Right Angle 1 3.45
